OC Week Update May 26th- Cross sections and new items added to the catalogue.

So this is the first live monthly issue for subscribers edit.

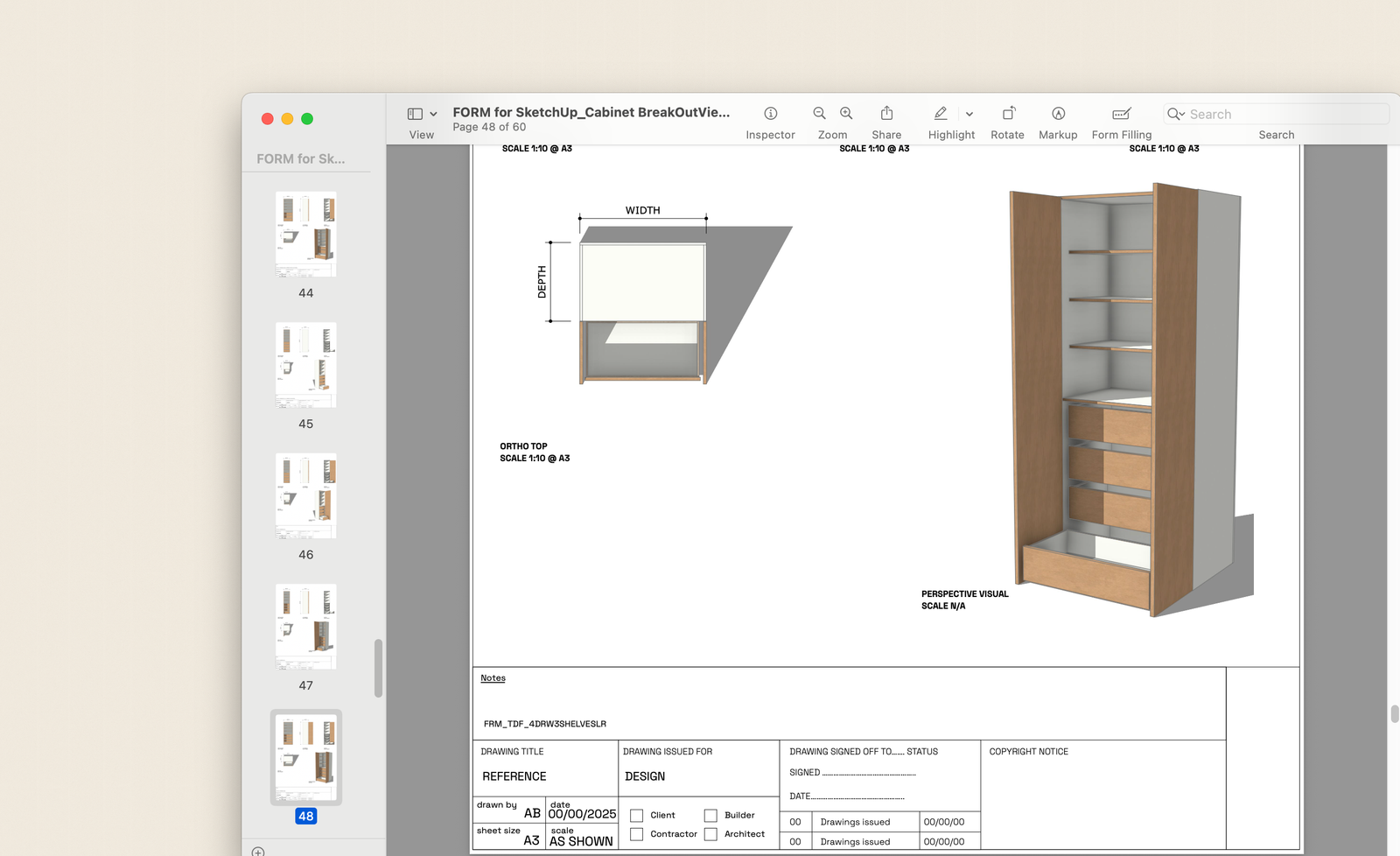

Dedicated scenes for cross sections

Each kitchen & utility model now has a dedicated scene for cross sections & cut throughs horizontally & vertically. (as always, please re-download the latest version ) I'll pop in the link below to access the updates you require. [ If you are reading this Tuesday 27th Wardrobes are ready also ]

Download FORM for SketchUp

The links below will take you to the most recent copy of FORM for SketchUP - Subscribers edit. You must be subscribed & logged in to see the links Not sure where to begin after download? I’d recommend checking out the following : FORM workflowFORM Workflow The workflow of FORM for SketchUp

objects and conceptsToby

Manufacture details created for subscribers edit

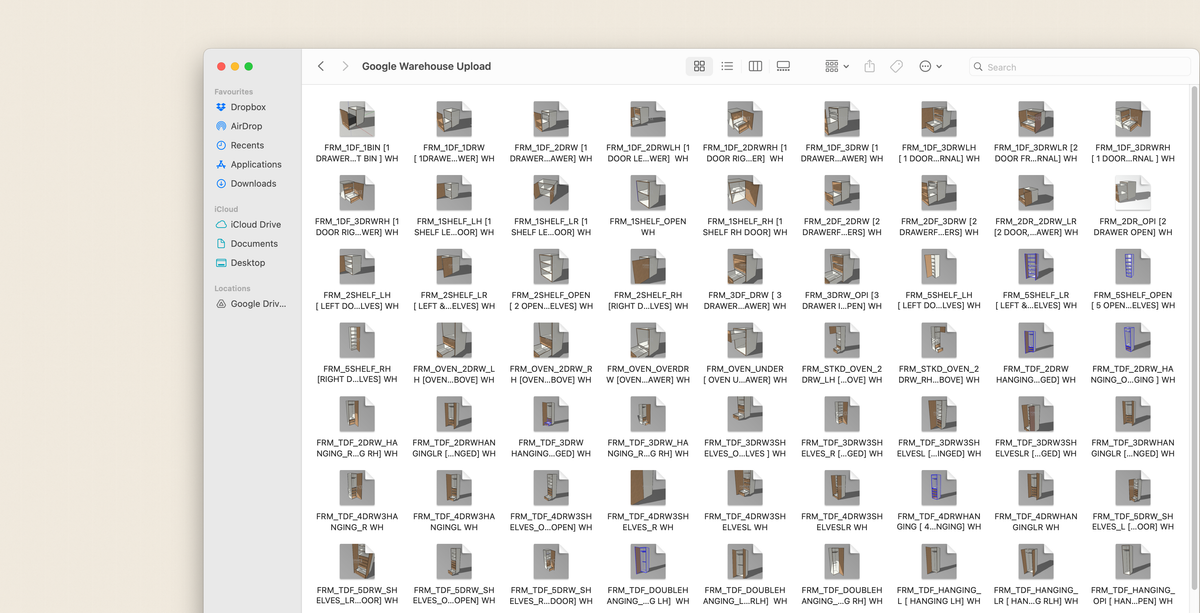

Models added this week :

• Set of 96mm increment spaced 3mm & 5mm holes for screws.
• Set of 50mm spaced 5mm holes for adjustable shelves.

To use - copy and paste into your model, into the specific component that it is referenced for example, the shelf holes would be brought into the left or right hand panel and then using the push/pull tool extruded to the depth you require.

I would advise only doing this when you have correctly sized your model as the nature of dynamic components will squish the holes if done prior.

Subscribers Edit Model Additions - Coming Friday 30th

4 New models

• Right Hand Door, 3 Drawers below, hanging POCKET DOOR
• Left hand door 3 drawers below, hanging POCKET DOOR
• 5 drawer pack
• Double door wardrobe, 3 drawers below


To both free & subscribers edit members, thanks for supporting.

I'll update you next week.

T
